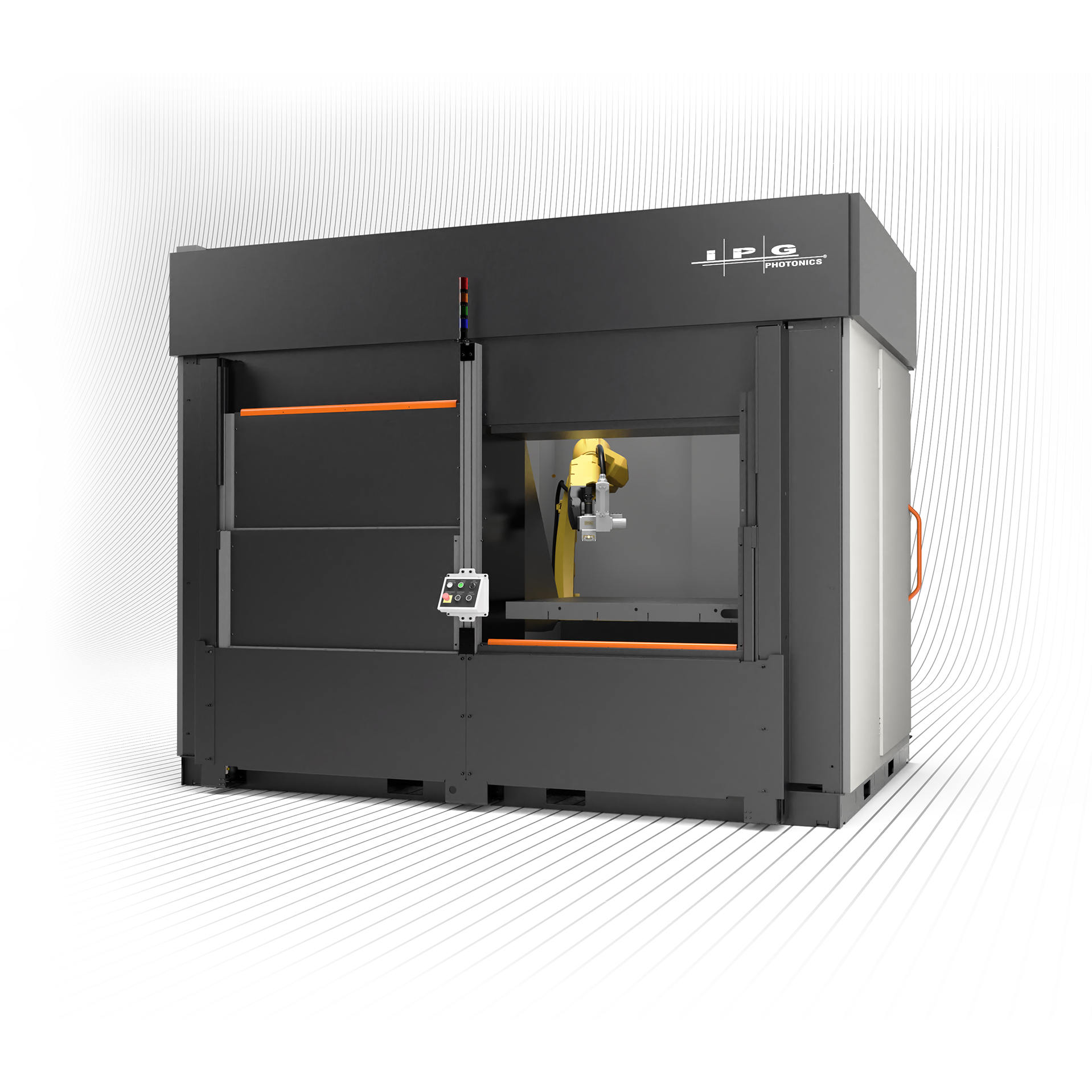

AP300
Dual-Purpose Arc/Laser Robotic Welding Systems
Arc or Laser Welding
Highly-Configurable
Built for Productivity
AP300 robotic welding systems are highly-configured pre-engineered platforms designed to increase welding productivity and precision for a wide variety of small to medium-sized parts.
Offered in both arc and laser configurations, AP300 systems deliver process flexibility that can be tailored for the specific demands of many complex welding tasks.
All IPG robotic welding systems are backed by decades of welding automation experience and 24/7/365 technical support.
Offered in both arc and laser configurations, AP300 systems deliver process flexibility that can be tailored for the specific demands of many complex welding tasks.
All IPG robotic welding systems are backed by decades of welding automation experience and 24/7/365 technical support.
Arc or Laser Welding
Highly-Configurable
Built for Productivity
AP300 robotic welding systems are highly-configured pre-engineered platforms designed to increase welding productivity and precision for a wide variety of small to medium-sized parts.
Offered in both arc and laser configurations, AP300 systems deliver process flexibility that can be tailored for the specific demands of many complex welding tasks.
All IPG robotic welding systems are backed by decades of welding automation experience and 24/7/365 technical support.
Offered in both arc and laser configurations, AP300 systems deliver process flexibility that can be tailored for the specific demands of many complex welding tasks.
All IPG robotic welding systems are backed by decades of welding automation experience and 24/7/365 technical support.

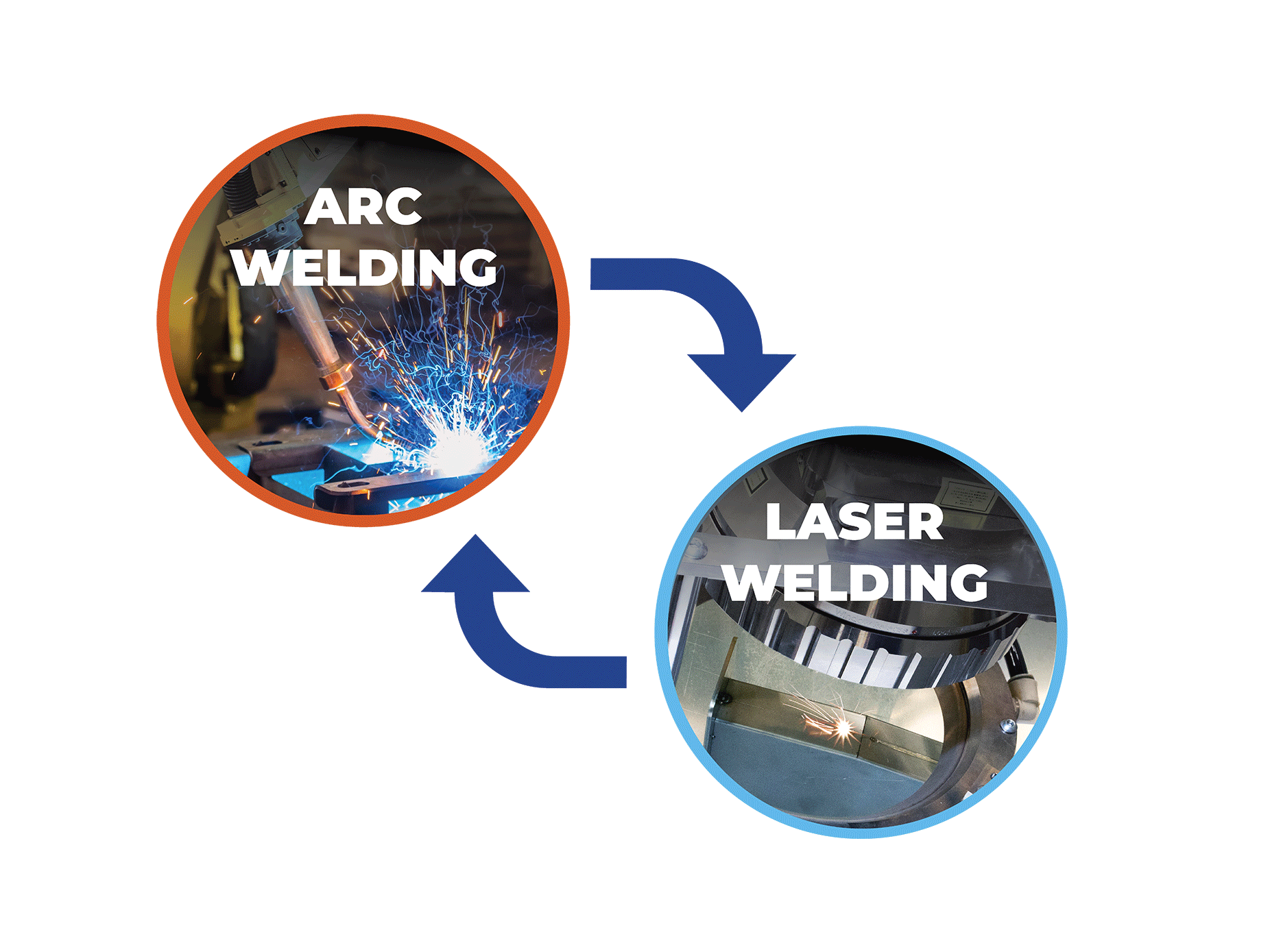

Arc and Laser Welding Process Flexibility
Welding Automation Doesn't Have to Be All or Nothing
Will you still be welding the same parts the same way in six months? A year? Five years?
A rigid machine forces you to commit to a welding process now. A flexible machine grows and adapts to your needs.
That’s why we created the AP300. Integrate a turnkey arc welding solution and add laser capability later. Or start with laser welding and change to MIG to address new part designs.
Either way, our welding automation team is prepared to offer you a solution that meets you where you are.

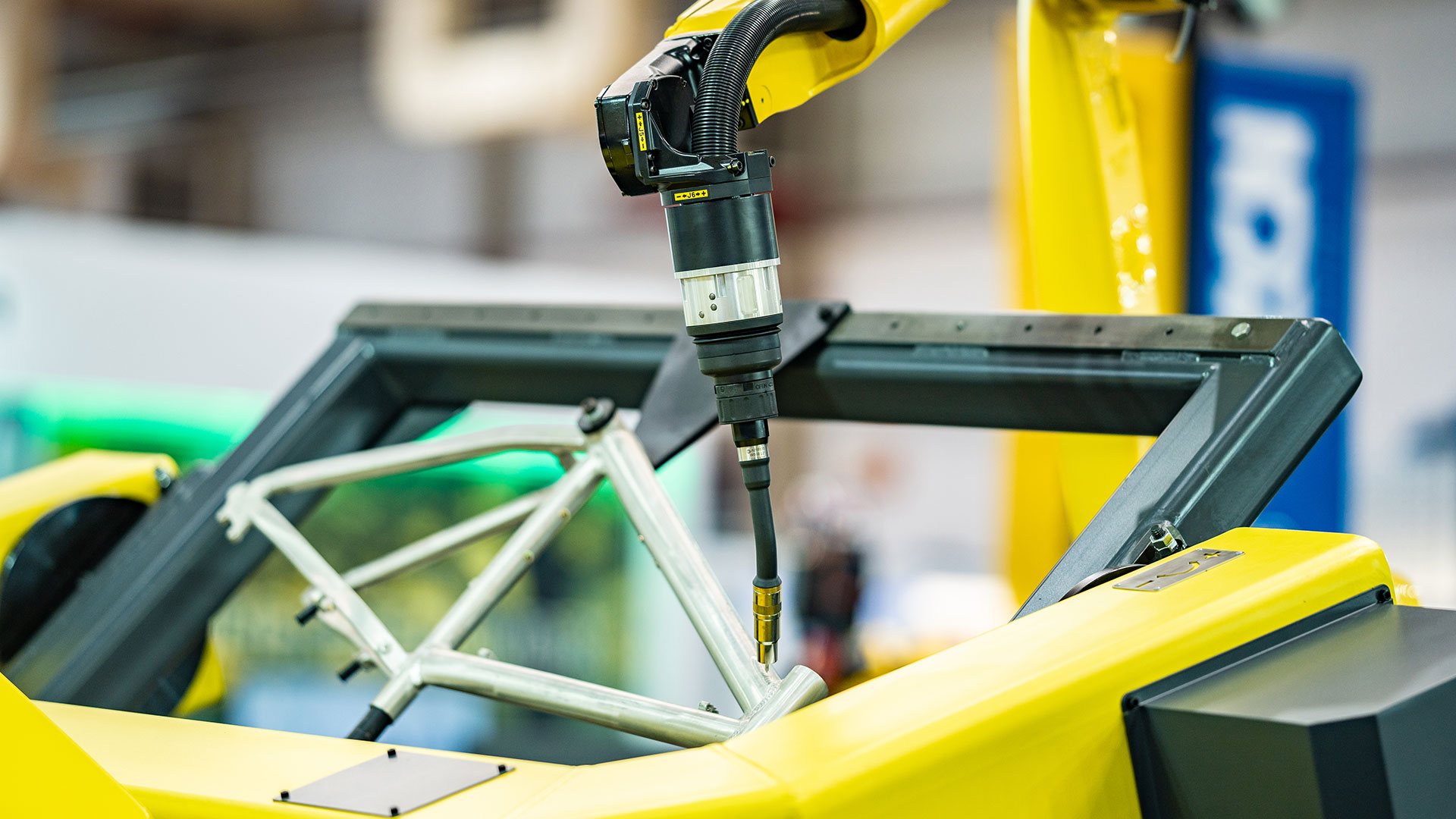

Reliable, acessible welding automation.
Laser welding is powerful, but it's not a real-world fit for every production line or shop floor. Part tolerancing, material quality, and gap variations can make arc welding a more reliable and consistent process.
Sound familiar? If it does, or if your operation just isn't ready for a laser system yet, then we are happy to offer a powerful robotic arc welding solution and decades of experience to go with it. You can always trade up to a laser welding configuration in the future.
More tolerant of variation: Automated arc welding is more tolerant of fit-up gaps and joint variation, reducing upstream production demands.
Increased heavy-duty flexibility: Arc welding is often the best process for thicker materials, heavy structural work, or designs that require wider weld seams.
Increased accessibility: Robotic arc configurations come with reduced initial costs and more straight-forward integration.
Familiarity: For manufacturers with robotic arc welding experience, configuration and implementation is easier and more familiar.

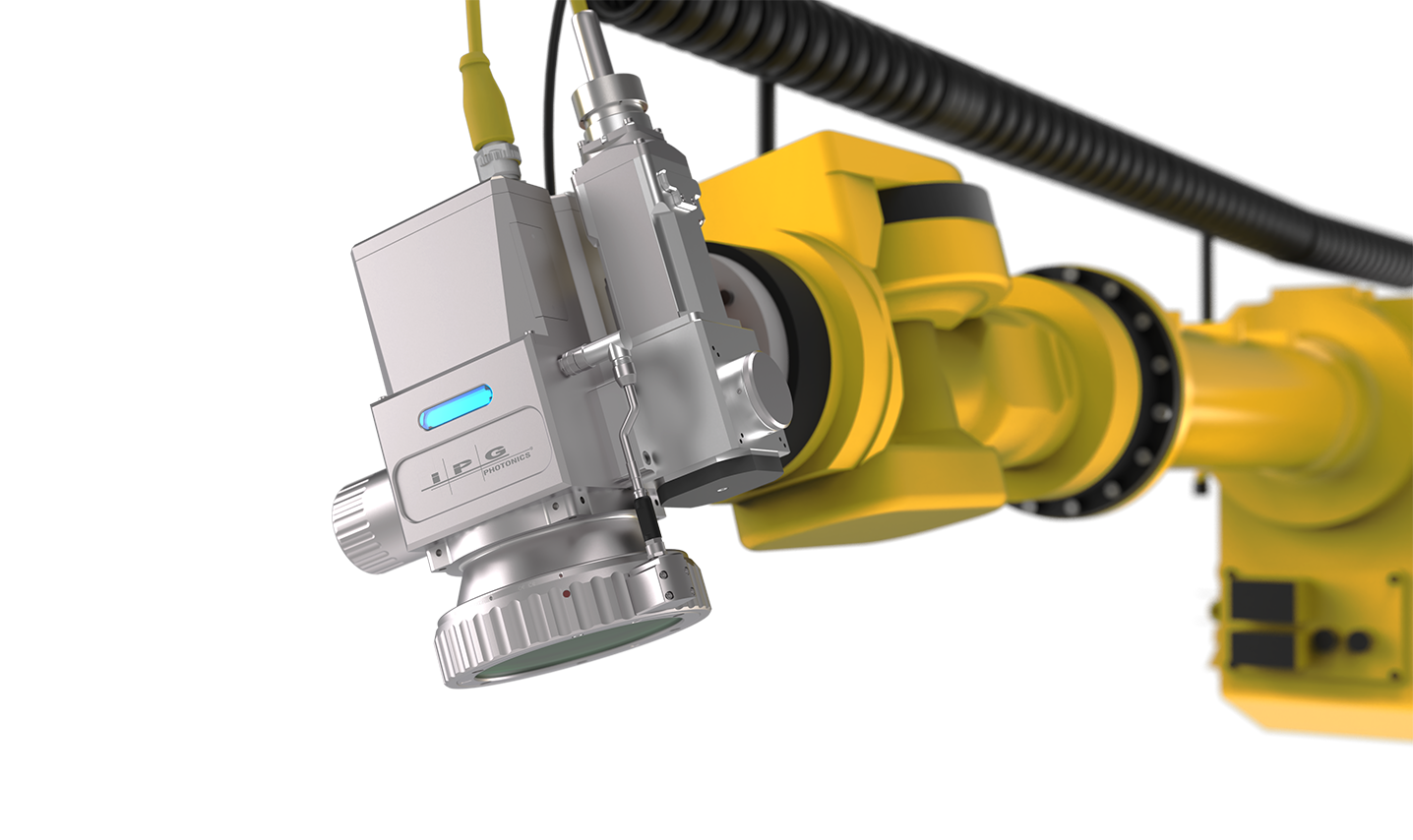

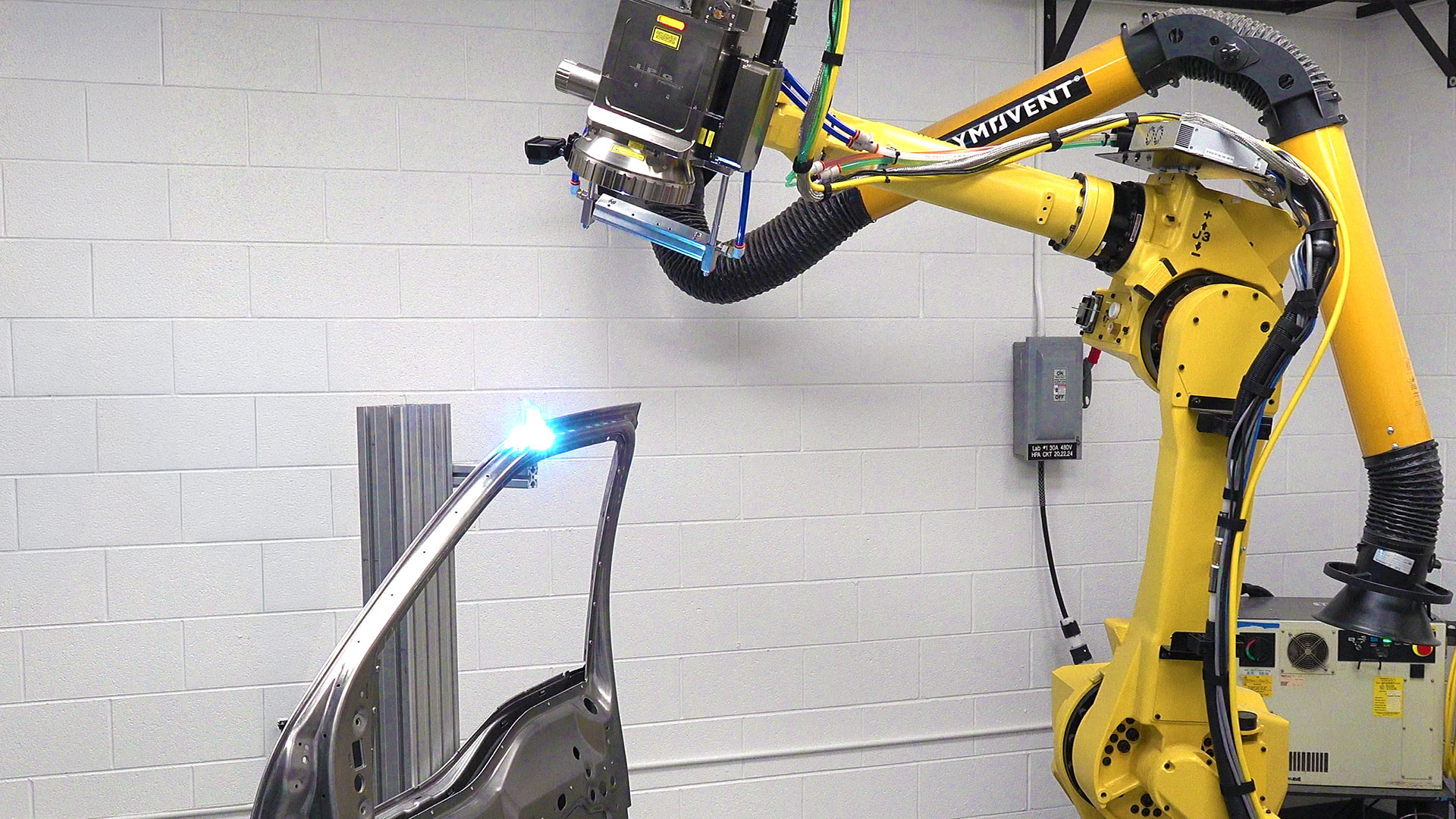

Power. Precision. Productivity.
Laser welding offers the speed, precision, and process control that enables the fabrication of a wide variety of cutting edge products. From aerospace components to household appliances and from small part runs to serial production, laser welding is a high-quality process that delivers significant ROI.
Not sure if you’re ready for laser welding? With decades of experience in arc and laser welding automation, we’re here to make integrating a laser solution painless, from process development to technical support.
Speed and productivity: laser welding offers rapid weld penetration and unmatched travel speeds.
Supports advanced automation: Integrates with machine vision to reduce part holding and fixturing complexity.
Precision and quality: Produces narrow welds with low heat input, improving consistency while minimizing thermal distortion and secondary finishing processes.
System Features & Options

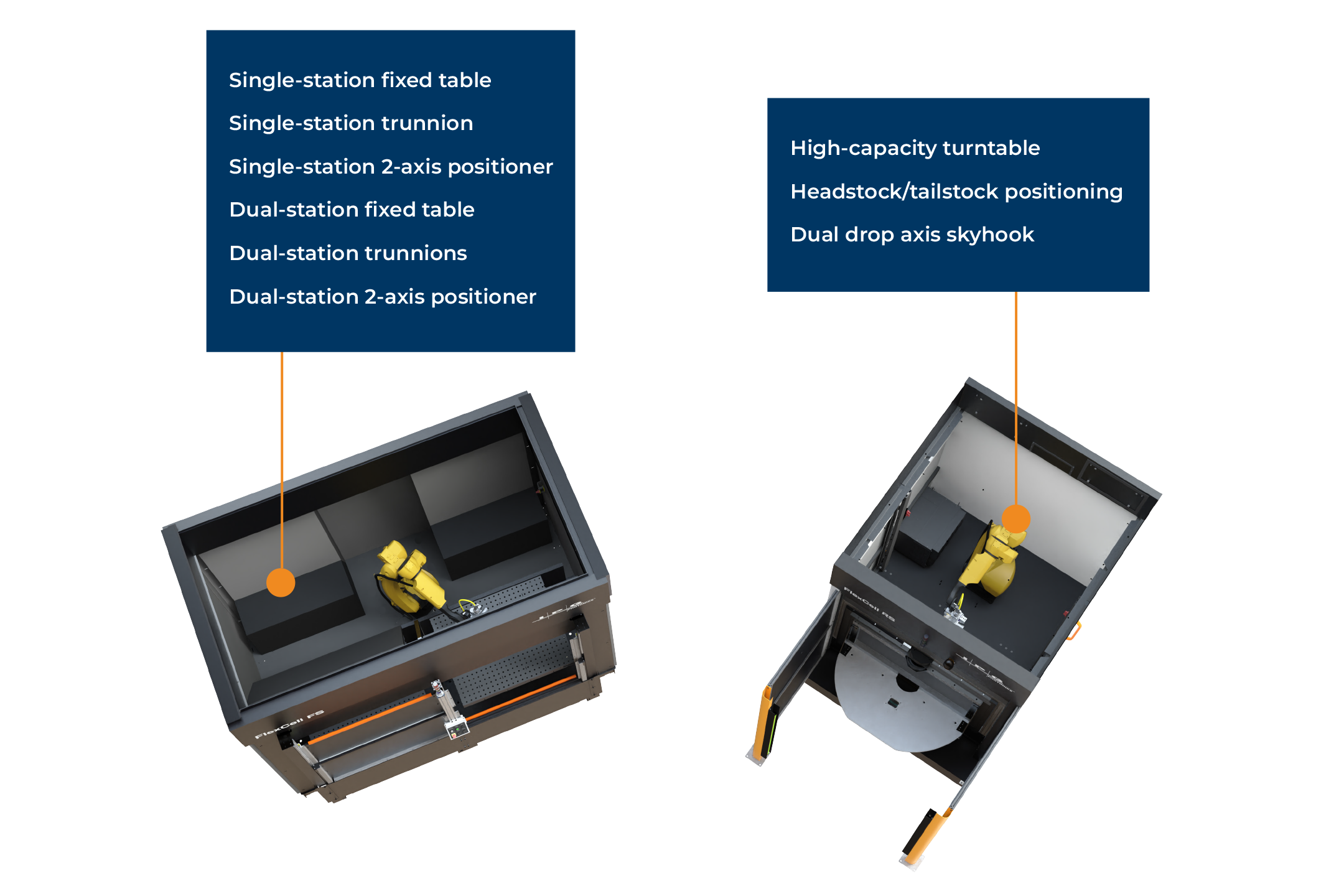

One platform. Six unique configurations.
Take advantage of a highly-configurable robotic welding platform built for your requirements. Maximize weld quality, productivity, and tackle a wide range of part sizes, geometries, and complexities.
- Single-station fixed table
- Single-station trunnion
- Single-station 2-axis positioner
- Dual-station fixed table
- Dual-station trunnions
- Dual-station 2-axis positioner
AP300 System Specifications
 |
| AP300 System |
| Standard Dimensional Specifications |
|---|
| Welding Table Length |
| Single Station: 2032 mm Dual Station: 1016 mm |
| Welding Table Width |
| 762 mm |
| Welding Table Height |
| 812 mm |
| System Length |
| 3712 mm |
| System Width |
| 2969 mm |
| System Height |
| 2934 mm |

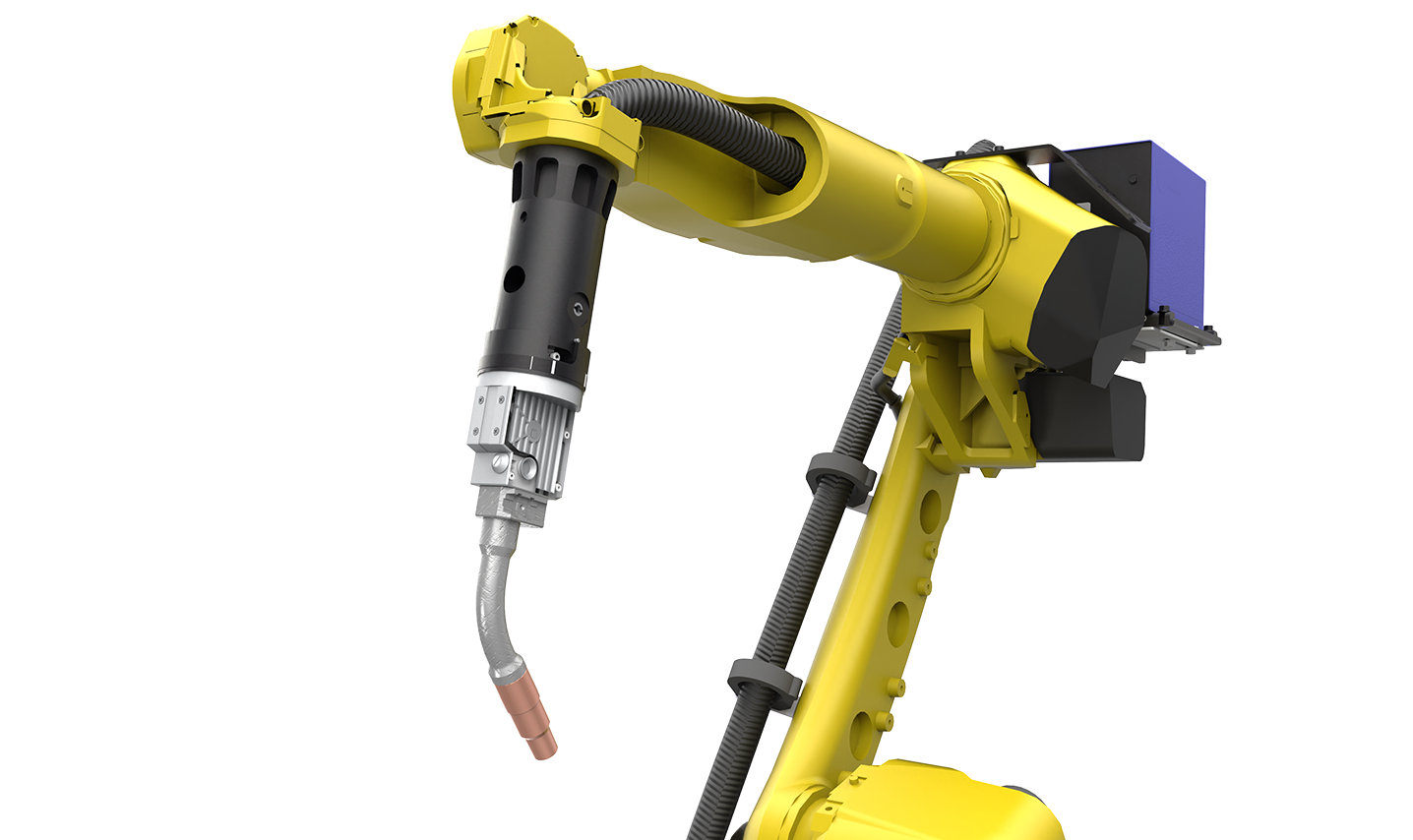

| Standard Options (Arc) |
| Robotic Arms |
| FANUC |
| Process Gear |
| Miller, Lincoln, Fronius, ESAB |
| Welding Torches |
| TBi, Abicor Binzel, Fronius, ESAB, Tregaskiss |
| Torch Cleaning Stations |
| TBi, Abicor Binzel, ESAB, Tregaskiss |
| Control Equipment |
| Allen Bradley |

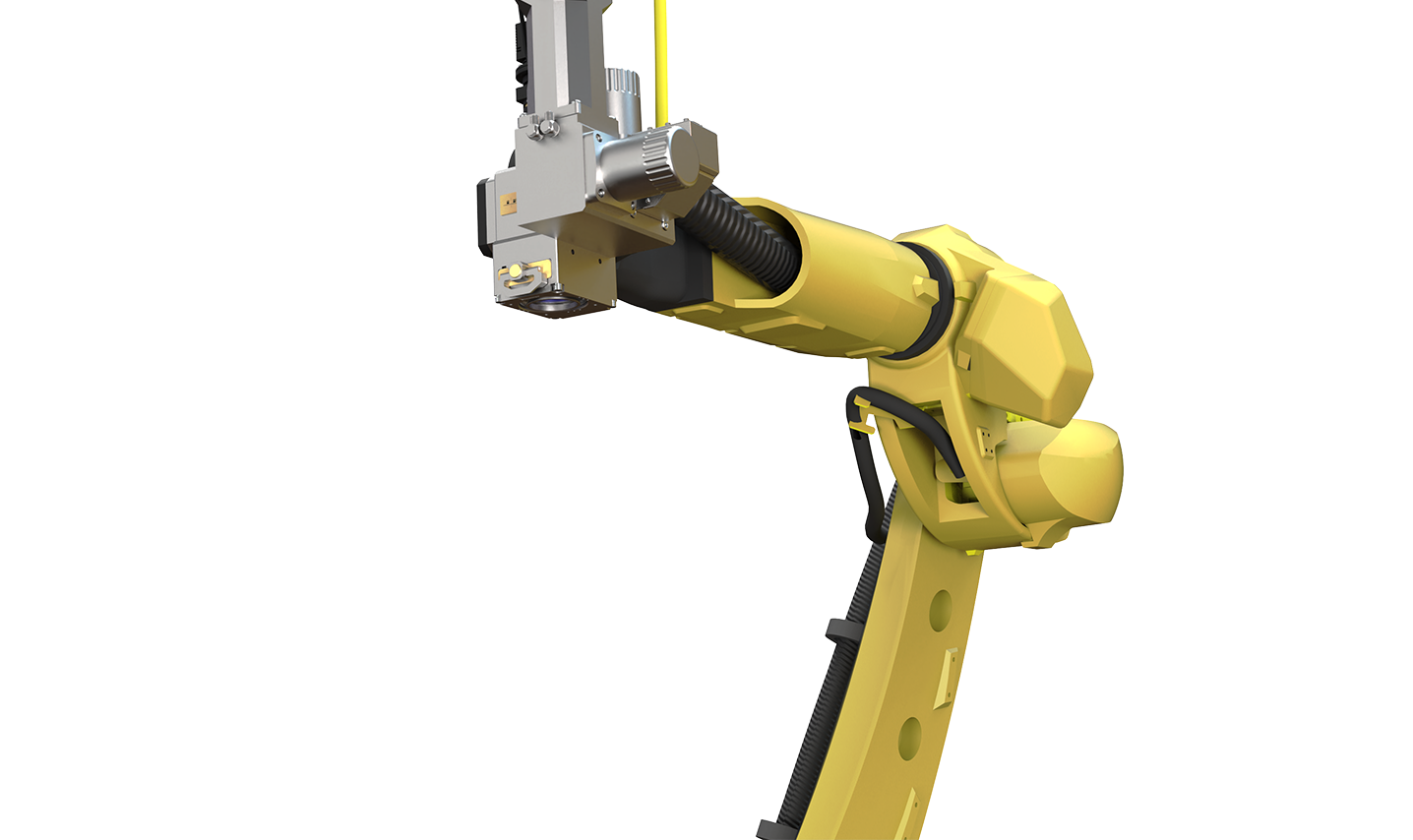

| Standard Options (Laser) |
| Laser Source |
| IPG YLR Rack-Mounted 1.5 kW Fiber Laser IPG YLR Rack-Mounted 6 kW Fiber Laser IPG YLS Cabinet 6 kW Fiber Laser IPG Dual-Beam 6 kW Fiber Laser |
| Robotic Arms |
| FANUC |
| Laser Welding Heads |
| IPG D30 Laser Welding Head (Static or Wobble) IPG D20 High-Power Laser Scan Head IPG D33 Ultra High-Power Laser Scan Head |
| Machine Vision |
| Vision-Guided Weld Placement |
| Optional Platform Specifications |
| Single Trunnion |
| Tool Length: 2200 mm Tool Swing: 990 mm Weight Capacity: 750 kg |
| Dual Trunnion |
| Tool Length: 900 mm Tool Swing: 990 mm Weight Capacity: 272 kg |
| Learn More |
|
|||
| Standard Dimensional Specifications | |||
| Welding Table Length | Single Station: 2032 mm Dual Station: 1016 mm | ||
| Welding Table Width | 762 mm | ||
| Welding Table Height | 812 mm | ||
| System Length | 3712 mm | ||
| System Width | 2969 mm | ||
| System Height | 2934 mm | ||
| Standard Options (Arc) | |||
| Robotic Arms | FANUC | ||
| Process Gear | Miller, Lincoln, Fronius, ESAB | ||
| Welding Torches | TBi, Abicor Binzel, Fronius, ESAB, Tregaskiss | ||
| Torch Cleaning Stations | TBi, Abicor Binzel, ESAB, Tregaskiss | ||
| Control Equipment | Allen Bradley | ||
| Standard Options (Laser) | |||
| Laser Source | IPG YLR Rack-Mounted 1.5 kW Fiber Laser IPG YLR Rack-Mounted 6 kW Fiber Laser IPG YLS Cabinet 6 kW Fiber Laser IPG Dual-Beam 6 kW Fiber Laser | ||
| Robotic Arms | FANUC | ||
| Laser Welding Heads | IPG D30 Laser Welding Head (Static or Wobble) IPG D20 High-Power Laser Scan Head IPG D33 Ultra High-Power Laser Scan Head | ||
| Machine Vision | Vision-Guided Weld Placement | ||
| Optional Platform Specifications | |||
| Single Trunnion | Tool Length: 2200 mm Tool Swing: 990 mm Weight Capacity: 750 kg | ||
| Dual Trunnion | Tool Length: 900 mm Tool Swing: 990 mm Weight Capacity: 272 kg | ||
| Learn More |
The specifications above represent standard system configurations. IPG can offer customized specifications upon request.
Product availability may vary by region.
Service & Support
End-to-end welding automation solutions
Whether you need a turnkey system on the floor as soon as possible or are looking for a custom-built machine from an end-to-end production partner, we offer complete solutions with decades of robotic automation expertise.
That's why we partner with manufacturers throughout the entire manufacturing lifecycle, from application evaluation and optimization to part design, implementation, and ongoing 24/7 system support.
