Eficiência energética
Potência de saída
Comprimento de onda
Since 1990, IPG's continuous innovation and world-leading laser technologies have enabled thousands of manufacturers to produce millions of parts every day.
IPG high-power fiber lasers offer the flexibility and versatility to maximize productivity across any industry and application.
Eficiência energética
Potência de saída
Comprimento de onda
Since 1990, IPG's continuous innovation and world-leading laser technologies have enabled thousands of manufacturers to produce millions of parts every day.
IPG high-power fiber lasers offer the flexibility and versatility to maximize productivity across any industry and application.
IPG high-power lasers are a long lasting investment in the success of your operation, often operating for over a decade even with aggressive duty cycles.
A robust design resists power and beam quality degradation, ensuring the highest process quality and stability for years of industrial use.
IPG high-power fiber lasers have the longest lifetimes, require minimal maintenance, and are supported by the best high-power laser warranty on the market.
IPG high-power fiber lasers are super compact and lightweight, saving valuable floor space and simplifying integration into production systems.
IPG high-power fiber lasers are the most energy efficient lasers on the market, achieving electricity savings that are comparable to the price of the laser itself.
Continuous improvements to our laser architecture have led to the highest performance high-power fiber lasers yet.
Quer necessite de uma solução laser personalizada ou queira apenas saber mais sobre a nossa equipa global de especialistas em laser, estamos aqui para o ajudar.
Our high-power fiber lasers utilize a modular design which combines the output of multiple fiber laser modules into a single delivery fiber, allowing continuous operation even in the event of a single module failure.
Our high-power fiber lasers are powered by the world's most efficient and long lasting single-emitter diodes.
We design our lasers with an optimal quantity of these diodes, to ensure laser operation at an ideal current, extending the lifetime of the laser, maximizing electrical efficiency, and increasing return on investment.
 |  |
| High-Power Laser Cabinets | High-Power Fiber Laser Racks |
| YLS Series | YLR Series |
| Comprimento de onda | |
|---|---|
| 1070 nm | 1007, 1010, 1030, 1070 nm |
| Single-mode Power | |
| até 10 kW | up to 3 kW |
| Multi-mode Power | |
| 1 to 125+ kW | up to 8 kW |
| Multi-mode Fiber Diameter | |
50, 100, 150, 200 μm (Feed Fiber Output) | 50, 100, 200 μm |
| Power Tunability | |
| 10-100% | 10-100% |
| Modulation Frequency | |
| up to 10 kHz | até 50 kHz |
| Arrefecimento | |
| Water or Air | Air Cooling up to 1.5 kW |
| Saiba mais | Saiba mais |
|
||||||||
| Comprimento de onda | 1070 nm | 1007, 1010, 1030, 1070 nm | ||||||
| Single-mode Power | até 10 kW | up to 3 kW | ||||||
| Multi-mode Power | 1 to 125+ kW | up to 8 kW | ||||||
| Multi-mode Fiber Diameter | 50, 100, 150, 200 μm (Feed Fiber Output) | 50, 100, 200 μm | ||||||
| Power Tunability | 10-100% | 10-100% | ||||||
| Modulation Frequency | up to 10 kHz | até 50 kHz | ||||||
| Arrefecimento | Water or Air | Air Cooling up to 1.5 kW | ||||||
| Saiba mais | Saiba mais | |||||||
As especificações acima representam produtos padrão. A IPG pode oferecer lasers com especificações personalizadas mediante solicitação.
A disponibilidade do produto pode variar consoante a região.
A IPG é mais do que apenas o inventor e principal fornecedor de lasers de fibra de alta potência. Quer necessite de componentes ou de sistemas laser personalizados, a IPG oferece soluções abrangentes para praticamente todos os sectores e aplicações.
Junte-se à IPG em todas as fases do seu percurso de processamento a laser, desde o desenvolvimento inicial da aplicação até ao serviço e apoio contínuos.
COMPACT
IPG fiber lasers are super compact and lightweight, saving valuable floor space and simplifying integration into production systems.

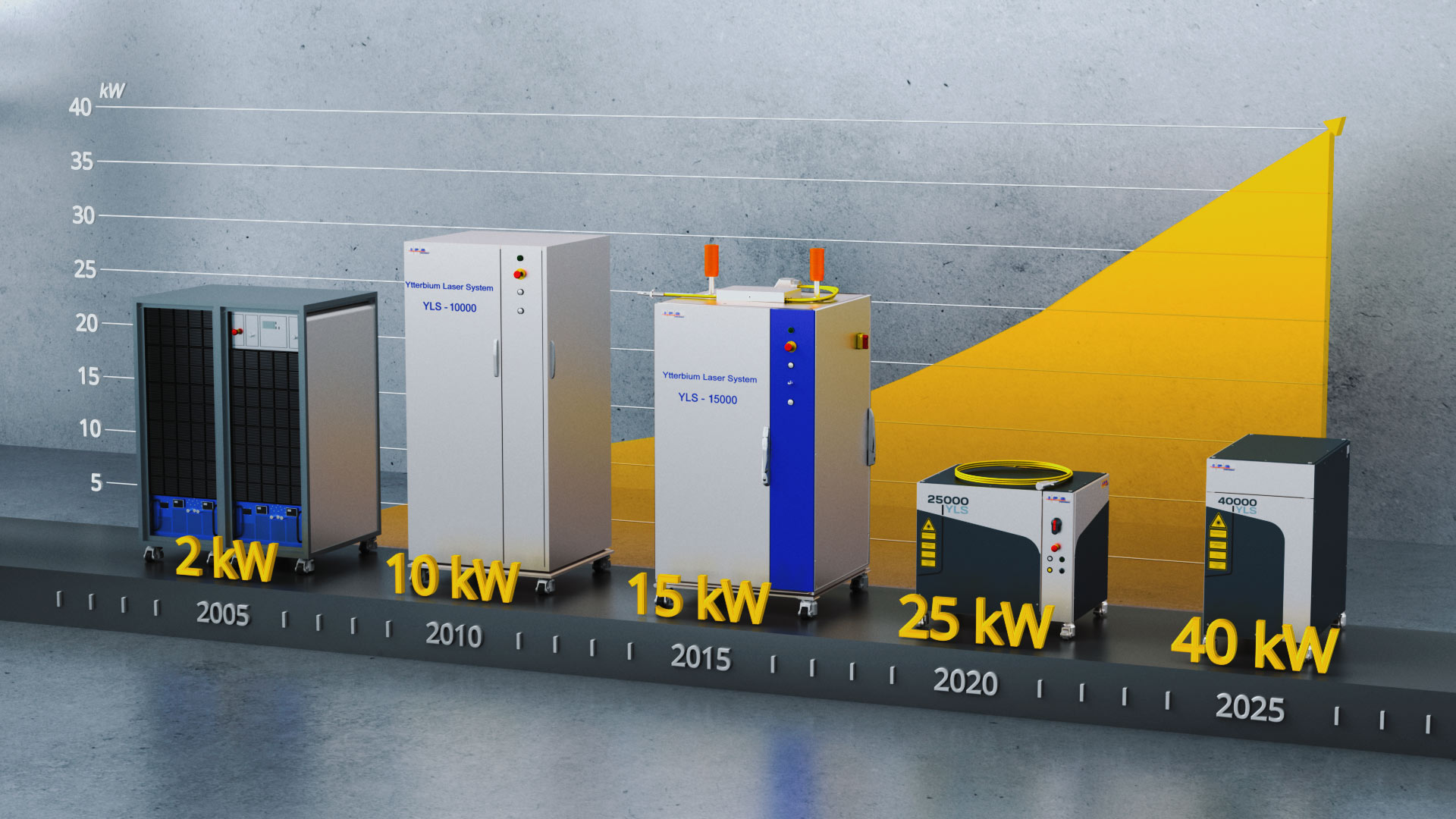

Since their introduction to the market in early 2000s, the power to volume ratio of kilowatt-class lasers has improved more than 10x.
IPG continues to lead the market in compactness and weight reduction of high power industrial fiber lasers.
RELIABLE
Fiber lasers have a monolithic, entirely solid state, fiber-to-fiber design without free-space mirrors or optics, enabling laser operation in the harshest working environments.
Fiber lasers can be lifted by cranes and moved around on wheels. They do not require vibrationally isolated floors or expansive thermally stabilized rooms and enclosures.
IPG fiber lasers have the longest pump diode lifetimes, require minimal maintenance and have the lowest down time. Our high power laser warranty is the best on the market.
EFFICIENT
IPG fiber lasers are the most energy efficient lasers on the market.
Typical electrical efficiencies of YLS industrial fiber lasers are over 40%, while YLS–ECO lasers reach efficiencies over 50%.
With the rising electricity costs, savings in laser running costs due to electrical consumption over the lifetime of the laser amount to tens of thousands of dollars and are often comparable to the price of laser itself.
