Infrared Ultrafast Fiber Lasers
Picosecond & Femtosecond Pulses
50-5500 kHz
Repetition Rate
Up to 200 W
Durchschnittliche Leistung
250 fs-5 ps
Impulsdauer
Infrared ultrafast lasers offer the highest power and pulse energy for maximum throughput in applications that require picosecond and femtosecond pulses. These lasers are the ideal choice for a variety of applications such as precision micromachining, fine tube cutting, and foil cutting.
Designed for robust and reliable performance in 24/7 industrial applications, IPG ultrafast lasers enable "cold processing" to dramatically reduce thermal damage in a wide range of materials.
Designed for robust and reliable performance in 24/7 industrial applications, IPG ultrafast lasers enable "cold processing" to dramatically reduce thermal damage in a wide range of materials.
50-5500 kHz
Repetition Rate
Up to 200 W
Durchschnittliche Leistung
250 fs-5 ps
Impulsdauer
Infrared ultrafast lasers offer the highest power and pulse energy for maximum throughput in applications that require picosecond and femtosecond pulses. These lasers are the ideal choice for a variety of applications such as precision micromachining, fine tube cutting, and foil cutting.
Designed for robust and reliable performance in 24/7 industrial applications, IPG ultrafast lasers enable "cold processing" to dramatically reduce thermal damage in a wide range of materials.
Designed for robust and reliable performance in 24/7 industrial applications, IPG ultrafast lasers enable "cold processing" to dramatically reduce thermal damage in a wide range of materials.
The First Choice for Microprocessing
IPG fiber lasers with infrared wavelengths (~1030 nm) offer high power and stability, making infrared ultrafast lasers an excellent choice for a variety of applications, including:
- Precision Micromachining

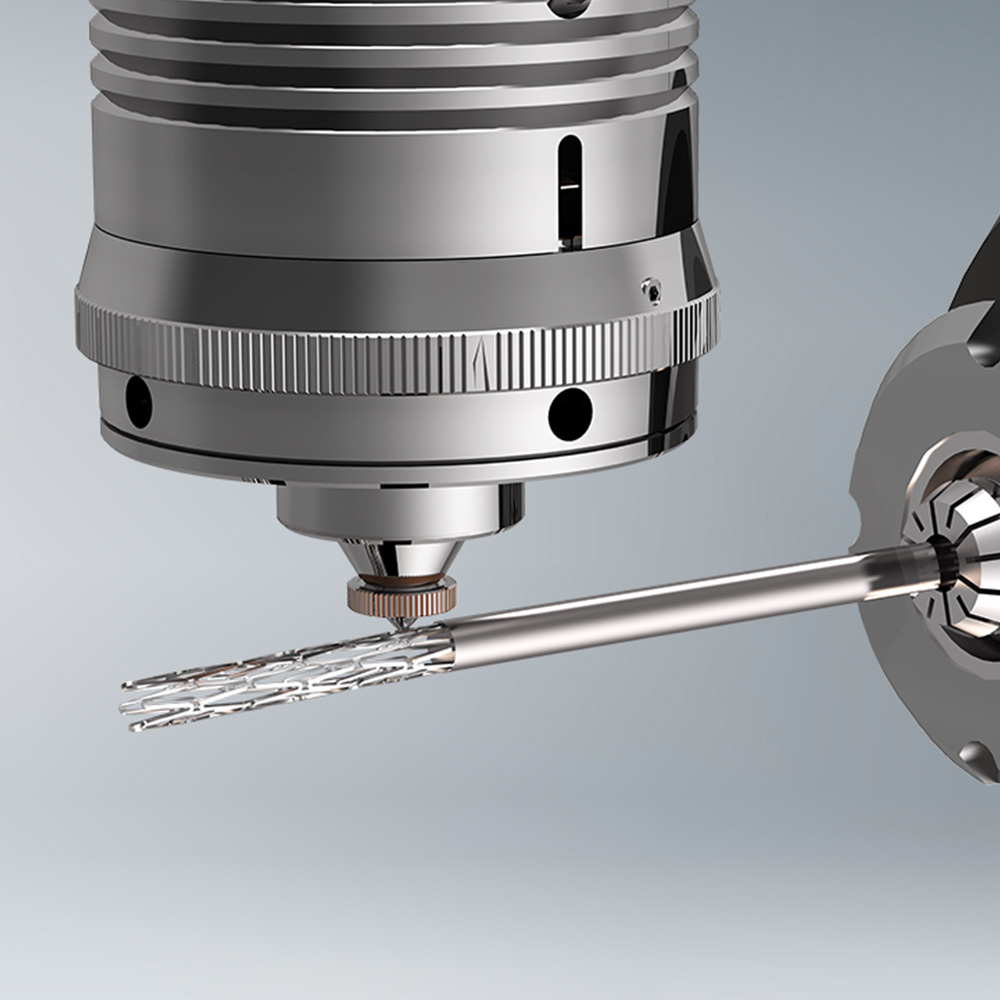

- Fine Tube Cutting
- Permanent Marking & Engraving
- Battery Foil Cutting
- Thin Film Ablation
Infrared Ultrafast Fiber Laser Comparison
 |  |  |
| Ultrakurzpulslaser | High Energy Ultrafast Lasers | High Power Ultrafast Lasers |
| YLPP/YLPF-R Series | YLPP/YLPF-R Series | YLPP/YLPF-R Series |
| Wellenlänge | ||
|---|---|---|
| 1030 nm | 1030 nm | 1030 nm |
| Durchschnittliche Leistung | ||
| up to 50 W | up to 100 W | up to 200 W |
| Impulsenergie | ||
| up to 50 µJ | up to 200 µJ | Typ. 20 µJ (up to 200 µJ in burst mode) |
| Impulsdauer | ||
| 200 fs to 5 ps | 600 fs to 5 ps | 600 fs to 5 ps |
| Impulswiederholungsrate | ||
| 100 to 5500 kHz | 100 to 5500 kHz | 1000 to 5500 kHz (up to 44 MHz) |
| Beam Quality (Typ.) | ||
| <1.3 M2 | <1.3 M2 | <1.3 M2 |
| Weitere Informationen | Weitere Informationen | Weitere Informationen |
|
||||||||||||
| Wellenlänge | 1030 nm | 1030 nm | 1030 nm | |||||||||
| Durchschnittliche Leistung | up to 50 W | up to 100 W | up to 200 W | |||||||||
| Impulsenergie | up to 50 µJ | up to 200 µJ | Typ. 20 µJ (up to 200 µJ in burst mode) | |||||||||
| Impulsdauer | 200 fs to 5 ps | 600 fs to 5 ps | 600 fs to 5 ps | |||||||||
| Impulswiederholungsrate | 100 to 5500 kHz | 100 to 5500 kHz | 1000 to 5500 kHz (up to 44 MHz) | |||||||||
| Beam Quality (Typ.) | <1.3 M2 | <1.3 M2 | <1.3 M2 | |||||||||
| Weitere Informationen | Weitere Informationen | Weitere Informationen | ||||||||||
Die oben genannten Spezifikationen beziehen sich auf Standardprodukte. Auf Anfrage kann IPG Laser mit kundenspezifischen Spezifikationen anbieten.
Die Produktverfügbarkeit kann je nach Region variieren.
